Waterproof Distribution Box Moisture Guide 2026

Why Your Waterproof Distribution Box Has Moisture — And Which Type of Failure It Is

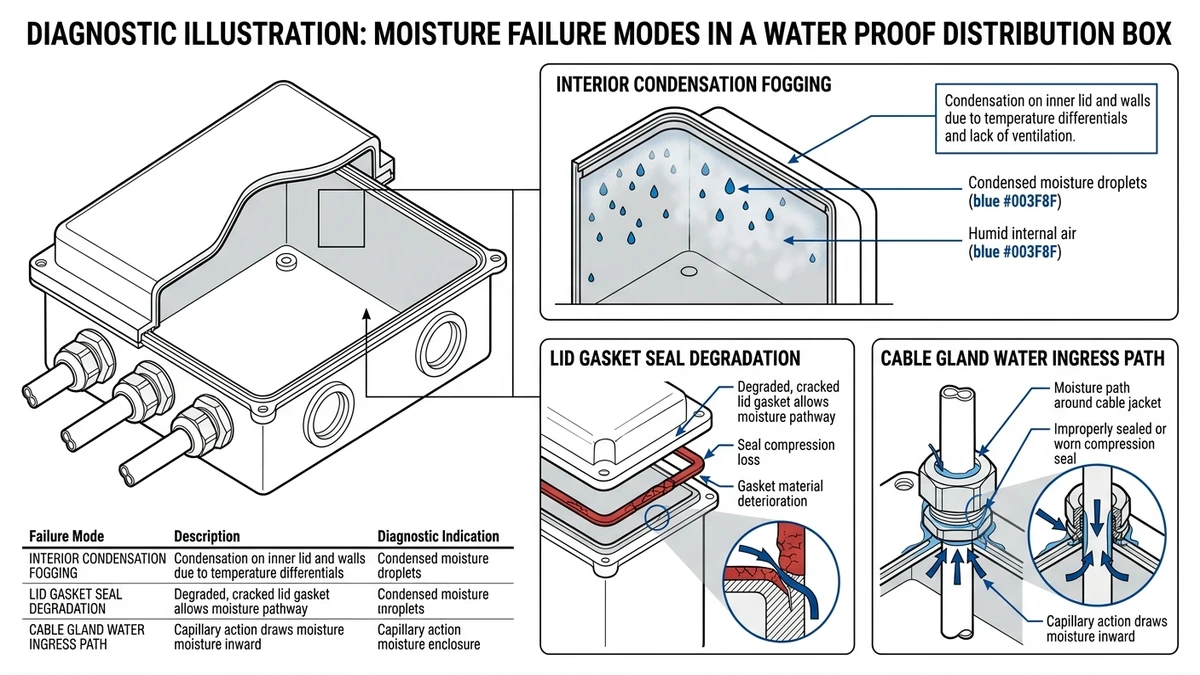

Moisture inside a waterproof distribution box almost always traces back to one of three root causes: seal degradation, condensation buildup, or mechanical breach. Identifying which type you’re dealing with determines the repair path. Most field failures fall into the condensation or seal category, and confusing the two leads to repairs that do not last.

In a 2023 survey of rooftop PV installations across Zhejiang Province covering roughly 200 commercial sites, technicians found that over 60% of reported moisture ingress cases in DC distribution boxes were condensation-driven, not seal failures. Yet many had simply been re-sealed without addressing ventilation, causing repeat failures within 6 months.

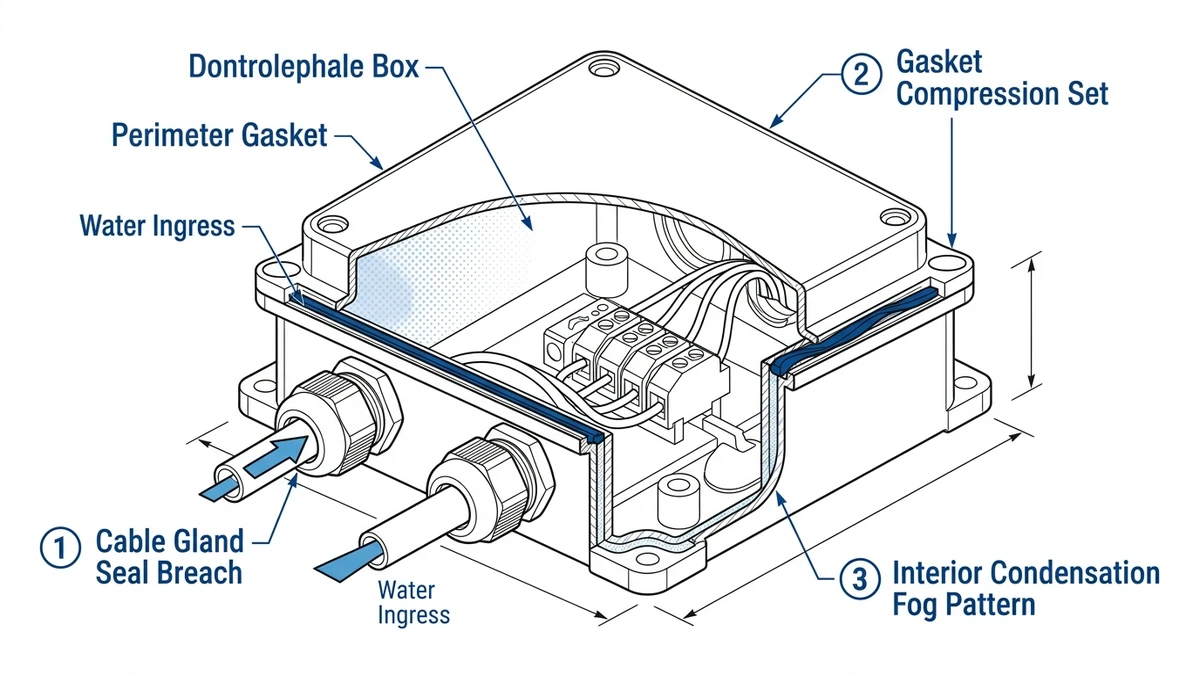

Root-Cause Decision Framework

Use the following logic to classify the failure before touching any hardware:

Step 1 — Locate the moisture pattern

Uniform fogging on the inner lid or walls points to condensation. Pooled water near a cable entry or corner points to ingress through a breach.

Step 2 — Check IP rating history

IEC 60529 defines ingress protection levels. A box rated IP65 resists water jets from any direction; IP67 handles temporary immersion up to 1 m for 30 minutes. If the installation environment exceeds the rated condition, you have a specification mismatch rather than a product defect.

Step 3 — Classify the failure type

• Condensation failure: temperature delta between interior and exterior exceeds roughly 15°C, with no visible seal damage
• Seal degradation: gasket compression set, cracking, or hardening, commonly after 3–5 years of UV and thermal cycling
• Mechanical breach: physical damage to the enclosure wall, cable gland, or mounting point

Step 4 — Confirm with a pressure test

A simple 5–10 kPa positive pressure test using a hand pump and soapy water will reveal active breach points within about 2 minutes. Condensation failures will show no leakage under pressure.

Path A — Condensation: Physics, Diagnosis, and the Right Fix

Once the moisture pattern points away from a direct leak, confirm whether temperature cycling is pulling humid air into the enclosure.

Why Sealed Enclosures Breathe

Every enclosure contains a fixed volume of air. As ambient temperature rises during the day, that air expands and pushes outward through any micro-gap in the gasket or cable entry. When temperatures drop at night, the air contracts and draws humid outside air back in.

The driving force is straightforward: a 30°C daily temperature swing in a 5-liter enclosure generates an internal pressure differential of approximately 50–100 Pa relative to ambient. That’s enough to overcome the sealing resistance of a degraded IP66 gasket, which typically loses 30–40% of its compression force after 3–5 years of UV and thermal cycling.

In a 12 MW ground-mount PV installation in Zhejiang Province in 2023, maintenance crews found condensation-related tracking faults in roughly 15% of string-level DC distribution boxes, even though the outer seals appeared intact.

Diagnosing Condensation vs. Ingress

• Condensation: moisture appears uniformly on interior walls and component surfaces, with no visible pooling, and correlates with overnight low temperatures
• Ingress: water pools at the lowest point, a visible entry path is usually present, and moisture may remain even on warm days

A simple dew-point check with a hygrometer inside the enclosure after a cold night supports a condensation diagnosis when relative humidity exceeds 85% and no external water path is found.

The Membrane Vent Fix

The correct solution is a pressure-equalizing membrane vent that matches the enclosure’s protection rating. These vents use expanded PTFE membranes that allow air and water vapor to pass while blocking liquid water ingress.

Installation procedure:

Step 1 — Select the right vent

Choose a vent rated for the enclosure’s IP class, with IP66 as a practical minimum for outdoor DC 컴바이너 박스, and a flow rate of at least 10 cm³/s to handle thermal breathing volume.

Step 2 — Mount it high

Install the vent at the highest point of the enclosure wall so liquid water cannot sit against the membrane face.

Step 3 — Eliminate alternate leak paths

Seal existing micro-gaps in cable glands and gaskets before fitting the vent. Otherwise, the vent cannot equalize pressure effectively.

Step 4 — Reinspect after 30 days

If condensation persists, check whether internal heat sources are creating localized hot spots that intensify the breathing cycle.

에 따르면 Gore’s technical documentation on ePTFE venting, properly installed membrane vents can reduce internal humidity cycling by up to 70% in sealed outdoor enclosures.

[Expert Insight]

• Install the vent on a vertical wall, not the lid, when washdown or driven rain is common.
• If the enclosure has multiple internal heat sources, place the vent near the warmest upper air pocket rather than simply at the geometric top.
• Replace clogged membrane vents instead of trying to clean them with compressed air, which can damage the membrane structure.

Path B — Gasket and Lid Seal Failure: Diagnosis and Replacement

If condensation is ruled out, inspect the lid perimeter next because small gasket losses can drop enclosure performance long before the box itself looks damaged.

Identifying Seal Failure vs. Other Ingress Paths

Start by cleaning and drying the lid channel and gasket surface, then apply a thin line of talcum powder along the perimeter. Close and latch the lid under normal torque, then expose the enclosure to a directed water spray at 12.5 L/min for 3 minutes using IEC 60529 IPX6 parameters. Re-open and inspect the powder trace: a disturbed or wet section pinpoints the breach.

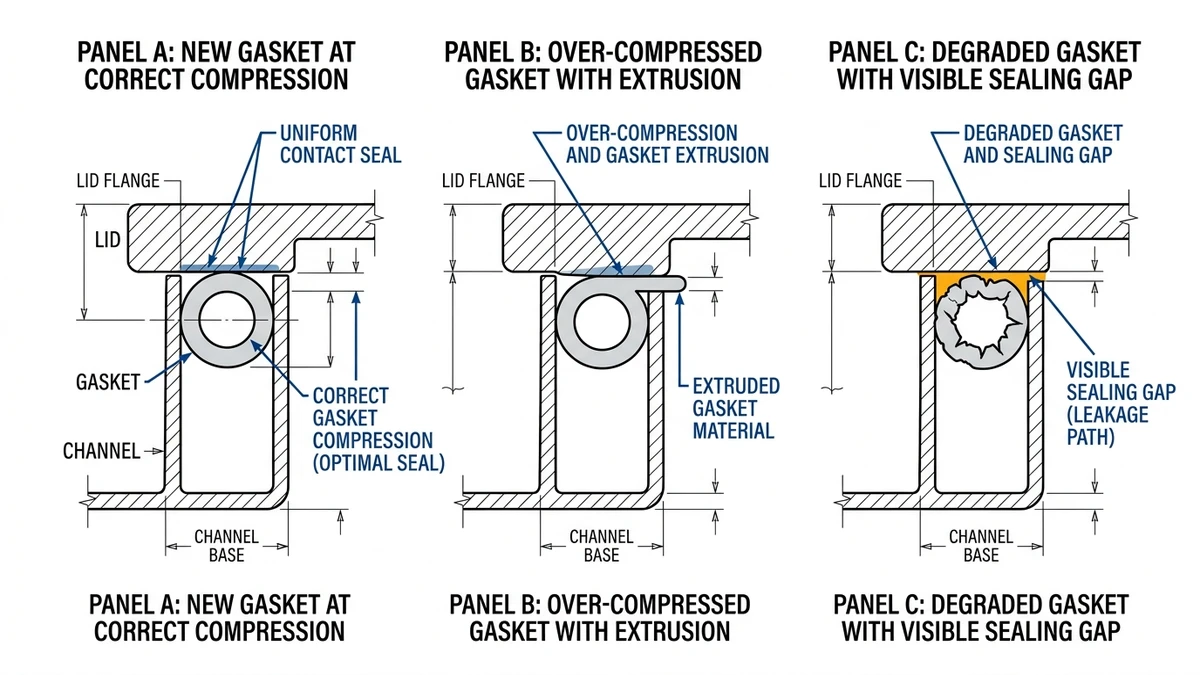

Also check for gasket compression set. A gasket that has lost more than 30% of its original cross-section height will no longer form a reliable seal under standard clamping force.

Gasket Material Comparison

Choosing the correct replacement material depends on the site environment.

In a 6 MW rooftop installation across commercial buildings in Zhejiang Province in 2023, EPDM gaskets on combiner enclosures showed no measurable compression set after 18 months of outdoor exposure, while neoprene units on the same roof required replacement within 14 months due to UV cracking.

Replacement Procedure

Step 1 — Isolate power

De-energize and lock out the circuit. Verify zero voltage at the DC 스위치 단로기 before opening the enclosure.

Step 2 — Remove the old gasket

Pull the gasket out completely and use a plastic scraper if needed. Avoid scoring the lid channel.

Step 3 — Clean and dry the channel

Wipe the channel with isopropyl alcohol and allow it to dry fully.

Step 4 — Install the replacement gasket

Fit the new gasket evenly and place any splice joint at a corner rather than along a flat horizontal run where water may collect.

Step 5 — Torque the lid evenly

Tighten lid fasteners in a cross pattern to the manufacturer’s specified value, typically 2–4 N·m for M5 stainless hardware.

Step 6 — Retest before re-energizing

Repeat the talcum powder spray test to confirm the repair before restoring power.

For enclosures protecting string-level overcurrent components, a failed lid seal is more than a weatherproofing issue. Elevated humidity accelerates thermal degradation of sensitive protective parts.

Path C — Cable Entry and Gland Seal Failure

After the lid seal, cable entries are the most common place to find a true leak because a well-rated enclosure can still fail at a single poorly matched or under-torqued gland.

Cable entry points are among the most overlooked moisture ingress paths during routine inspection. Even a correctly rated IP66 or IP67 enclosure can fail at the gland if the fitting is under-torqued, mismatched to cable diameter, or degraded by UV exposure. IEC 60529 defines the enclosure rating, but field teams still need to follow gland manufacturer torque specifications, typically 2.5–4.5 N·m for M20 cable glands on standard PVC-jacketed cable.

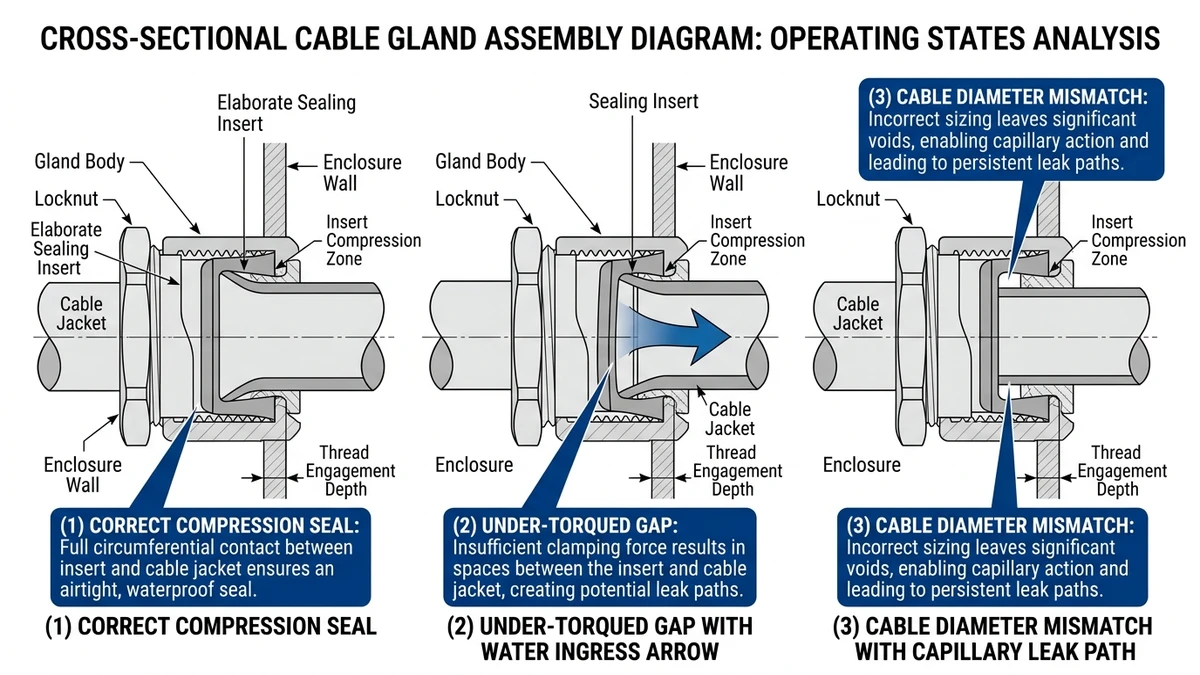

Gland Inspection Checklist

• Verify gland body material: nylon glands degrade faster than brass above 60°C ambient; use nickel-plated brass in high-UV or high-heat zones
• Check sealing insert condition: the elastomer insert should compress evenly around the cable with no cracking or flattening beyond 30% of original thickness
• Confirm cable diameter match: a 10 mm cable in a gland rated for 7–12 mm is acceptable, but a 6 mm cable in the same gland will not seal reliably
• Inspect locknut engagement: at least 3 full thread turns should be engaged on the enclosure wall
• Look for white mineral deposits or rust streaking below the gland, which often indicate active or historic water tracking

In a 2.4 MW rooftop PV installation in Zhejiang Province in 2023, four distribution boxes showed repeated GFCI trips traced to corroded terminal blocks. Inspection confirmed that M25 glands had been installed on 8 mm cables, leaving enough clearance for capillary water ingress during monsoon season.

Spray-Isolation Test Procedure

Step 1 — Dry and label

Dry the enclosure exterior completely and mark each gland with a number.

Step 2 — Test one gland at a time

Using a focused spray nozzle, apply water at 12.5 kPa to one gland for 60 seconds while keeping all others dry.

Step 3 — Check internally

Wait 90 seconds, then open the enclosure and inspect for moisture at the base of the tested gland only.

Step 4 — Repeat sequentially

Continue one gland at a time until the leaking entry point is identified.

This isolation method avoids the common mistake of blaming the perimeter gasket when the actual problem is a single loose or mismatched gland.

[Expert Insight]

• Measure actual cable jacket diameter with calipers before selecting a replacement gland; nominal cable size is often misleading.
• Re-torque glands after the first thermal cycle on new installations, especially where soft cable jackets cold-flow under compression.
• If water tracks down the cable sheath from above, add a drip loop before the gland so the fitting is not acting as the first water stop.

Repair vs. Replace — Decision Matrix and IR Test Procedure

Once the ingress path is identified, decide whether the enclosure can be safely recovered or whether internal contamination has already caused irreversible damage.

IR Test Procedure

Insulation resistance testing is the most reliable field method for assessing moisture damage severity. Use a 500 VDC or 1000 VDC megohmmeter between phase conductors and the enclosure earth terminal.

Measurement thresholds (per IEC 60364-6 verification testing guidelines):

• IR ≥ 1 MΩ: Acceptable — enclosure may be resealed and returned to service after drying
• IR 0.5–1 MΩ: Marginal — inspect all terminals and busbars for oxidation; retest after 24-hour drying at 40–50°C
• IR < 0.5 MΩ: Critical — replace enclosure; internal tracking paths are likely established

In a 15 MW rooftop PV project in Zhejiang Province in 2023, maintenance crews used this threshold protocol across 48 distribution boxes after a typhoon event. Boxes reading below 0.5 MΩ showed visible carbonization on busbar supports, matching the conclusion that dielectric degradation had become irreversible.

Repair vs. Replace Decision Matrix

For boxes housing DC 퓨즈 or surge protective components, use a stricter replacement threshold of IR below 1 MΩ rather than 0.5 MΩ, because moisture contamination can impair protective performance before severe tracking is visible.

After any repair, re-verify enclosure integrity with a pressure decay test or visual verification against IEC 60529 ingress criteria before returning the circuit to service.

Long-Term Prevention — Inspection Schedule by Environment

Most repeat failures come from inspection intervals that do not match the stress level of the site.

Why Environment Drives Interval, Not Just IP Rating

An IP66-rated box installed in a high-humidity tropical zone will usually degrade faster than an IP55 box in a controlled indoor environment. UV exposure hardens elastomer seals, salt-laden air attacks gasket adhesion, and thermal cycling causes cumulative compression set. A 20 MW ground-mount PV installation in Hainan Province in 2023 found that combiner boxes in coastal rows needed gasket replacement 18 months earlier than identical units installed 2 km inland.

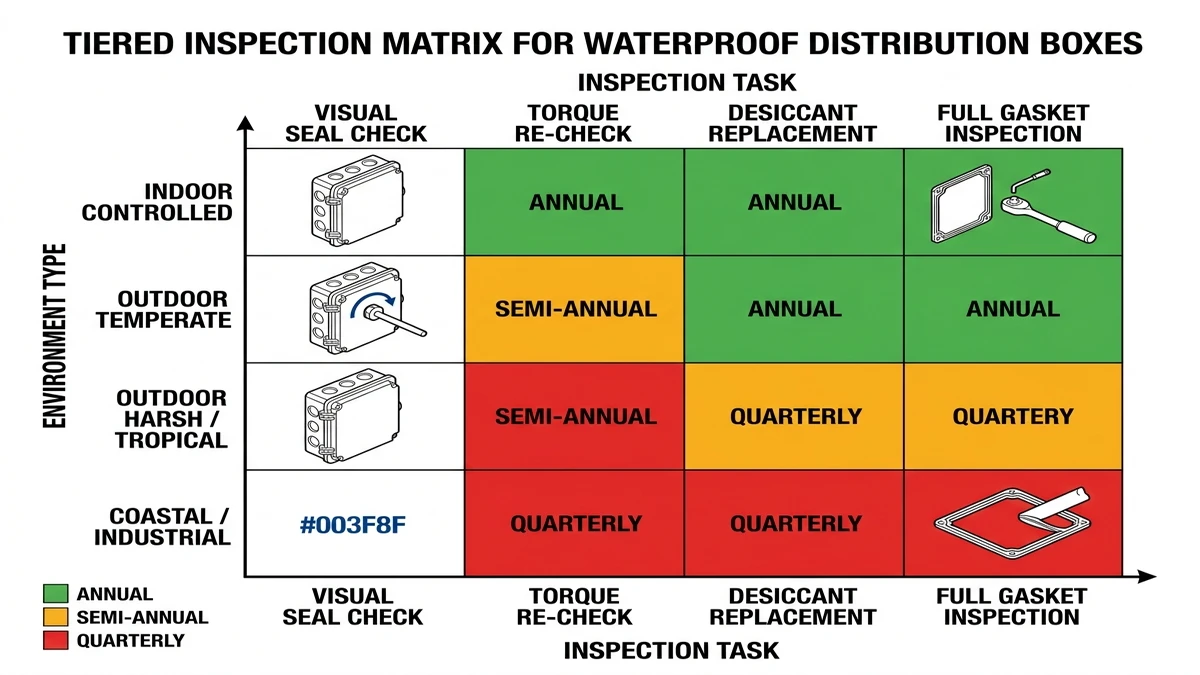

Inspection Interval Matrix by Environment

What Each Inspection Should Cover

During each scheduled check, verify cable gland torque against the manufacturer’s specified range, typically 2.5–5 N·m for M20 glands. Confirm that any pressure-compensation breather remains unobstructed. For boxes housing DC 퓨즈 또는 서지 보호 장치, also inspect for corrosion on terminal contacts.

Log every inspection with the date, findings, and corrective action. Trend data often reveals a weak gasket batch or recurring gland issue before it develops into a wider system fault.

Choosing the Right Enclosure to Prevent Recurrence

After a repair, enclosure selection determines whether the same failure mode will return at the next rainy season or thermal cycle.

IP Rating Selection by Environment

IP ratings under IEC 60529 define two levels of protection: the first digit covers solids ingress, and the second covers water ingress. For outdoor DC distribution applications, IP65 is the minimum practical threshold. Coastal, washdown, or high-humidity installations should typically move up to IP66 or IP67.

In a 2.4 MW rooftop PV installation across six industrial buildings in Zhejiang Province in 2023, enclosures downgraded from IP67 to IP65 during a cost-reduction phase showed seal degradation within 14 months under monsoon exposure, roughly twice as fast as the IP67 units on the same roof.

Material and Gasket Compatibility

IP rating alone is not enough. Enclosure body material and gasket compound must also match the thermal and UV conditions of the site. Polycarbonate housings typically handle –40°C to +120°C, while standard EPDM gaskets begin to compress-set under sustained high-temperature exposure. In high-UV environments, UV-stabilized GRP outperforms standard ABS over a long service life.

Improve enclosure reliability after repair

If the current enclosure has already failed at the seal, replacing it like-for-like may simply repeat the same problem. Sinobreaker’s DC 배전함 range is rated to IP66/IP67 with UV-stabilized enclosures and replaceable EPDM gaskets for outdoor PV and ESS environments. Pair with properly rated DC 회로 차단기 to improve long-term reliability.

자주 묻는 질문

Why does a waterproof distribution box still get moisture inside?

A waterproof enclosure can still accumulate moisture through condensation, degraded seals, or badly matched cable glands. The box rating only holds when the enclosure, fittings, and installation conditions all stay within specification.

How can I tell if moisture is from condensation or a leak?

Condensation usually appears as even fogging or film across internal surfaces, while leaks tend to create localized wet spots or pooling near an entry path. Pressure testing and spray-isolation testing help confirm the difference.

Can I fix moisture ingress just by adding silicone sealant?

Usually not. Sealant may hide the symptom for a short time, but it will not correct thermal breathing, a worn gasket, or an oversized gland.

What IR reading means the enclosure should be replaced?

As a general rule, readings below 0.5 MΩ indicate severe moisture-related damage, while boxes protecting sensitive DC protective devices should be replaced below 1 MΩ. Final judgment should also consider visible tracking, corrosion, and flood exposure.

How often should outdoor distribution boxes be inspected?

That depends on the environment. Temperate outdoor sites may only need semi-annual checks, while coastal or industrial locations often justify quarterly inspections.

Are membrane vents better than desiccants for condensation control?

For recurring temperature-driven humidity cycling, membrane vents are usually the more durable solution because they manage pressure equalization continuously. Desiccants can help in limited cases, but they require monitoring and replacement.

What is the most common installation mistake at cable entries?

Using a gland that does not match the actual cable jacket diameter is one of the most frequent errors. Even a small mismatch can leave a capillary path that defeats the enclosure’s rated protection.
