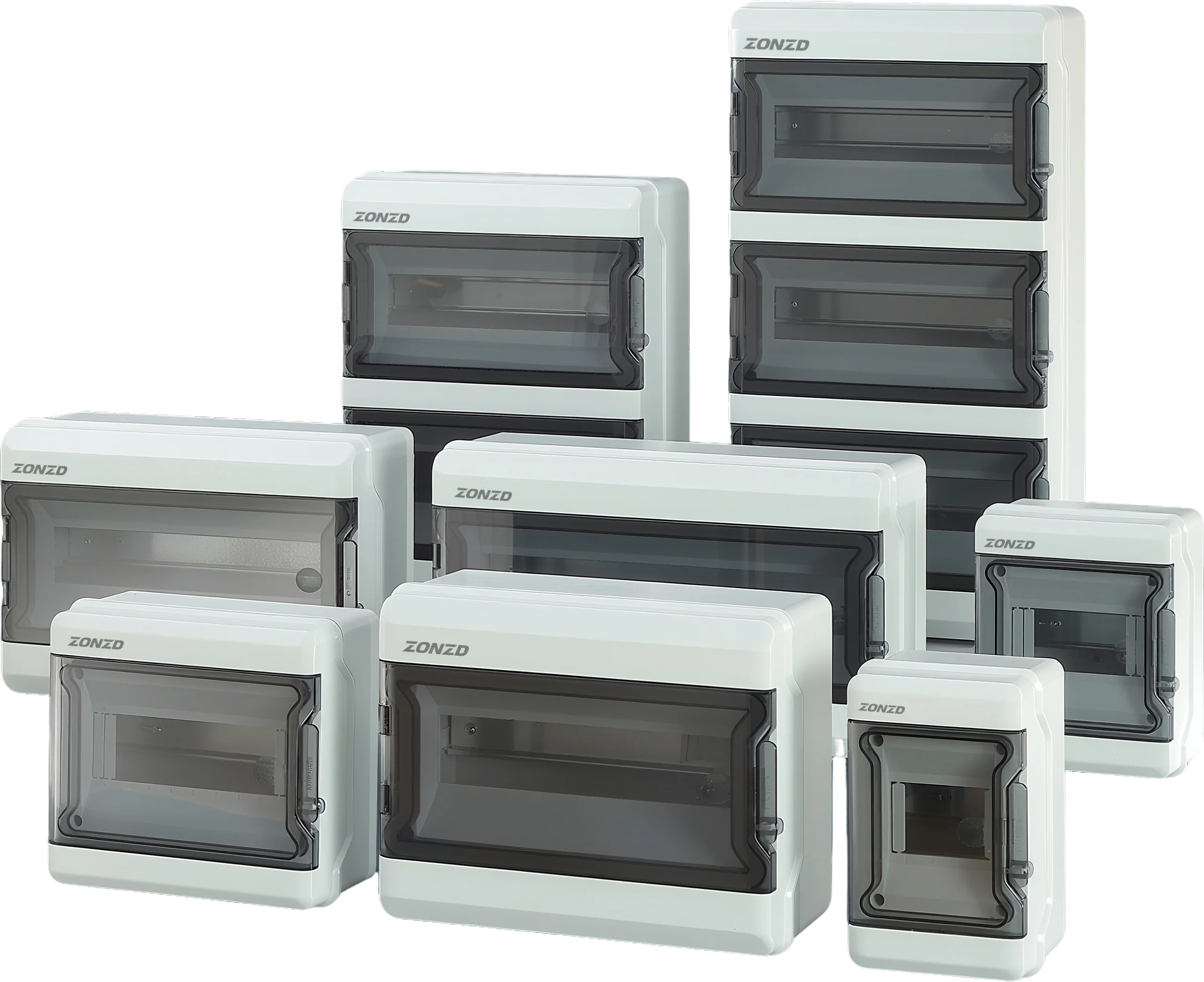

Waterproof Distribution Box (IP65–IP68) — AT & HT Series
(1) Waterproof distribution box engineered for harsh outdoor and industrial environments, providing IP65–IP68 sealing against dust, rain, and UV.
(2) Flexible options including plastic waterproof distribution box and DIN rail waterproof electrical distribution box for versatile wiring needs.
(3) Reliable waterproof electrical distribution panel box range ensures safe, long-lasting power management for lighting, pumps, and solar systems.
Need custom sizing or bulk order? Contact us today.
AT & HT Waterproof Distribution Box
Explore our curated selection of waterproof distribution box models from the AT and HT series. Each enclosure delivers dependable IP65–IP68 sealing for outdoor and industrial use, with options for plastic waterproof distribution box housings and DIN rail waterproof electrical distribution box configurations to suit diverse wiring requirements.
AT Series Side Open DC Distribution Box
AT series surface mounted waterproof distribution box product data summary table
| No. | Model | Number of circuits | Number of rows | Overall dimensions (mm) (L*W*H) | Zero and ground busbar configuration | Outer box size (mm) (L*W*H) | Gross weight of the entire box (kg) | Number of boxes (pieces) |
|---|---|---|---|---|---|---|---|---|
| 1 | AT-4 | 4way | Single row | 128*200*100 | Zero row: 3holes Ground row: 3holes | 545*425*555 | 21.5 | 40 |
| 2 | AT-6 | 6way | 164*200*100 | Zero row: 5holes Ground row: 5holes | 545*425*530 | 17.8 | 30 | |
| 3 | AT-9 | 9way | 218*200*100 | Zero row: 5holes Ground row: 5holes | 545*425*465 | 16.2 | 20 | |
| 4 | AT-13 | 13way | 296*230*120 | Zero row: 8holes Ground row: 8holes | 622*520*490 | 19 | 16 | |
| 5 | AT-15 | 15way | 332*230*120 | Zero row: 8holes Ground row: 8holes | 645*357*490 | 13.8 | 10 | |
| 6 | AT-18 | 18way | 386*230*120 | Zero row: 8holes Ground row: 8holes | 645*405*490 | 15.5 | 10 | |
| 7 | AT-26 | 26way | Double row | 296*390*130 | Zero row: Two8holes Ground row: Two8holes | 642*425*415 | 19.2 | 6 |
| 8 | AT-39 | 39way | Three rows | 296*550*130 | Zero row: Two8holes Ground row: Two8holes | 565*315*146 | 2.7 | 1 |
HT series surface mounted waterproof distribution box product data summary table
| No. | Model | Number of circuits | Number of rows | Overall dimensions (mm) (L*W*H) | Zero and ground busbar configuration | Outer box size (mm) (L*W*H) | Gross weight of the entire box (kg) | Number of boxes (pieces) |
|---|---|---|---|---|---|---|---|---|
| 1 | HT-2 | 2way | Single Row | 56*125*88 | / | 540*320*480 | 11.8 | 100 |
| 2 | HT-5 | 5way | 129*170*95 | Zero row: 3holes Ground row: 3holes | 555*365*520 | 18.2 | 40 | |
| 3 | HT-8 | 8way | 183*170*95 | Zero row: 5holes Ground row: 5holes | 520*390*545 | 17.8 | 30 | |
| 4 | HT-12 | 12way | 255*200*105 | Zero row: 8holes Ground row: 8holes | 570*425*540 | 18 | 20 | |
| 5 | HT-15 | 15way | 309*200*105 | Zero row: 8holes Ground row: 8holes | 648*460*430 | 17.3 | 16 | |
| 6 | HT-18 | 18way | 363*200*110 | Zero row: 8holes Ground row: 8holes | 600*383*430 | 12.6 | 10 | |
| 7 | HT-24 | 24way | Double row | 270*360*110 | Zero row: 2 strips with 8 holes Ground row: 2 rows with 8 holes | 570*395*385 | 9 | 6 |
Selection Notes
AT Series: Compact and value-focused; ideal for tight spaces and straightforward cabling.
HT Series: Offers more internal room and cleaner routing; choose HT when you need extra terminals or a small DIN rail configuration.
Environment: For sun-exposed installs, use UV-stabilized housings and confirm compliance with IP65 waterproof distribution box requirements.
Get a quick recommendation
We can help with sizing, accessories, and pre-assembled solutions.
Overview — Why Choose a Waterproof Distribution Box
A waterproof distribution box protects terminals, splices, and miniature modules from water, dust, and UV exposure—critical for outdoor reliability and safety. Our AT Series and HT Series are engineered for long-term performance under IP65 waterproof distribution box requirements.
Choose compact or large plastic waterproof distribution box options, including layouts that support a DIN rail waterproof electrical distribution box For tailored builds or bulk orders, request a custom waterproof distribution box.
Protection & Standards
Materials & Weatherability
- ABS / Polycarbonate: lightweight strength for field installs.
- UV-stabilized housings: resist yellowing and cracking in sunlight.
- Thermal range −25 °C to +85 °C: suitable for deserts, coasts, and cold climates.
Looking for documentation or pre-assembled kits? We can help size the enclosure, select accessories, and prepare wiring layouts. Contact us.
Key Features
Built for outdoor reliability, each waterproof distribution box in our AT & HT range balances sealing, materials, and serviceability—so your projects stay safe and easy to maintain.
IP65–IP68 Sealing
Proven gaskets and latch geometry keep water and dust out, delivering a dependable IP65 waterproof distribution box for gardens, rooftops, and coastal sites.
Lightweight, Durable Materials
ABS / PC housings create a robust plastic waterproof distribution box—easy to mount, impact-resistant, and stable under sunlight.
DIN-Rail Ready
Selected sizes support compact rail mounting to form a DIN rail waterproof electrical distribution box for breakers, terminals, or relays.
Clean Cable Management
Multiple entry options (PG / M glands, blind plugs) simplify routing and strain relief; pair with our AT Series or HT Series models for consistent layouts.
Panel Distribution Options
When a compact panel is needed, the enclosure can be configured as a waterproof electrical distribution panel box with clear labeling and service access.
Fast Install & Service
Click-fit hardware and clearances reduce install time and errors—ideal for roll-outs and maintenance cycles.
Customization & Bulk Builds
From pre-drilled entries to pre-wired kits, we offer a custom waterproof distribution box service for scale deployments.
Tip: Match enclosure size to conductor gauge and accessories (glands, terminals, busbars). For model guidance, see AT Series / HT Series or contact us for a quick recommendation.
Technical Specifications
The AT & HT families provide a robust waterproof distribution box platform with IP-rated sealing, durable plastics, and options for compact panelization.
Ingress Protection
- Ratings: IP65–IP68, suitable for outdoor exposure.
- Use cases: rooftops, façades, coastal zones, and light industrial sites.
- Reference: IEC 60529.
Materials
- ABS / Polycarbonate housings — lightweight and impact resistant.
- UV-stabilized resin to resist yellowing and cracking.
- Fire classification per UL 94.
Cable Entry & Glands
- Supports PG / M-thread glands; blind plugs for unused ports.
- Straight or right-angle routing with strain relief.
- Compatible with distribution box assemblies.
Mounting & Layout
- Surface mounting with reinforced bosses.
- Space for terminals, busbars, and labeling.
- DIN rail modules supported in select models.
Thermal & Environmental
- Operating range: −25 °C to +85 °C.
- Sealing gaskets maintain compression under thermal cycling.
- Materials tested for salt-mist and UV resistance.
Panelization & Customization
Configure as a waterproof electrical distribution panel box with breakers and relays. For custom drilling, pre-wired kits, or volume orders, see our DC Distribution Box Manufacturer.
For drawings and documentation, contact us or refer to related families such as
DC Fuse,
DC SPD, and
DC Switch Disconnectors.
Installation & Wiring
Plan entries, seal glands, and verify continuity—keep your waterproof distribution box compliant and serviceable on site. When an IP65 waterproof distribution box is specified, follow local code for torque, grounding, and labeling.
- Plan cable routes (PG / M glands)
- Maintain gasket compression
- Label circuits & torque check
- Field test: insulation & continuity
Use Cases
Our waterproof distribution box solutions adapt across industries. From rooftops to coastal sites, each IP65 waterproof distribution box is engineered for demanding applications.
Solar & Renewable
Reliable junctions for PV arrays and inverters. A custom waterproof distribution box ensures performance in high-UV, high-temperature rooftops.
Outdoor Lighting
A plastic waterproof distribution box protects cable joints against rain and dust, ensuring safety in gardens and façades.
Industrial Automation
Mount as a DIN rail waterproof electrical distribution box to host relays, terminals, and modular breakers.
Marine & Coastal
A waterproof electrical distribution panel box withstands salt-mist and humidity in ports and docks.
EV Charging
Multi-circuit models act as compact hubs for chargers, distributing safely even in rainy urban zones.
AT vs HT Series
Both AT and HT are part of our manufacturer portfolio of waterproof distribution box solutions. This comparison helps identify the best fit for your application.
| Aspect | AT Series | HT Series |
|---|---|---|
| Positioning | Compact, value-focused, ideal for straightforward cabling and limited spaces. | More internal room, designed for cleaner routing and additional DIN rail options. |
| Typical Sizes | 4–18 ways; suitable for small residential and light commercial setups. | 12–24 ways; preferred in larger installations and professional builds. |
| Mounting | Surface wall-mount with simple entry points. | Reinforced bosses and extra clearance for structured cabling. |
| Applications | Outdoor lighting, garden projects, and small solar arrays. Often paired with DC FUSE units for photovoltaic protection. | Industrial automation, marine/coastal sites, EV charging, and mid-size renewable hubs. Commonly integrated with DC SPD for surge protection or DC Switch Disconnectors for isolation. |
| Best Choice | When cost efficiency and compactness are top priorities. | When flexibility, expansion, and professional-grade wiring are required. |
Accessories & Compatibility
Build a complete solution around your waterproof distribution box. These accessories improve sealing, wiring clarity, and serviceability, and are compatible with our manufacturer portfolio.
Cable Entry
PG / M-Thread Cable Glands
Choose straight or right-angle glands with strain relief to maintain IP65 sealing and reduce pullout risk.
Terminations
Terminal Blocks & Ferrules
Color-coded terminals and sleeve ferrules help standardize cross-sections and simplify maintenance labeling.
Mounting
DIN Rail & Hardware Kits
Short sections and screws for compact rail builds—ideal when you configure a small panelized enclosure.
Protection
DC Fuse Holders
Inline or rail-mount holders for PV strings. See related products in DC FUSE.
Surge
DC SPD Modules
Type 2 surge protection for arrays and control cabinets. Browse DC SPD options.
Isolation
DC Switch Disconnectors
Compact isolators for maintenance safety and code compliance. Explore DC SWITCH DISCONNECTOR.
Breathing
Vent Plugs
Membrane vents balance pressure and reduce condensation without compromising dust and water resistance.
Identification
Labels & Markers
Circuit and gland labeling improves service accuracy and speeds up on-site troubleshooting.
Security
Locks & Anti-Tamper Screws
Optional cover locks and tamper-resistant screws protect critical wiring and reduce unauthorized access.
FAQ
Quick answers about selecting and using a waterproof distribution box. If your question isn’t covered, contact us for help.
What IP rating do I need—does IP65 cover outdoor rain?
For general outdoor exposure, an IP65 waterproof distribution box is suitable for rain and dust. Projects with heavy spray or temporary immersion may specify IP66–IP68. Always confirm local codes and test conditions before installation.
AT vs HT—how should I choose?
AT focuses on compact, value-driven builds for straightforward cabling. HT offers more internal room for cleaner routing, extra terminals, or DIN-rail modules. If unsure, share your circuit count and cable entry plan via Contact Us.
ABS or polycarbonate—what’s better for a plastic enclosure?
ABS provides good strength–to-weight at lower cost; polycarbonate improves impact and temperature resistance. Both can be UV-stabilized. We can recommend a plastic waterproof distribution box material based on your site (sun exposure, temperature, vibration).
Can I mount DIN-rail devices inside?
Yes. Selected sizes accept short rail sections for breakers, relays, or terminals—effectively making a DIN rail waterproof electrical distribution box. Verify clearances and heat dissipation.
What accessories should I pair with the enclosure?
Use PG/M glands with strain relief, vent plugs to reduce condensation, and labeled terminals for serviceability. For protection and isolation, see DC FUSE, DC SPD, and DC SWITCH DISCONNECTOR.
How do I size the box (ways / circuits / rows)?
Count present circuits plus 20–30% spare. Check device height and bending radius for your largest cable. If the DIN rail is required, confirm row spacing and label area before finalizing the model.
Do you support customization or pre-wired assemblies?
Yes—drilled entries, special gaskets, labeling, and pre-wired kits are available through our DC Distribution Box Manufacturer service. Share your BOM and we’ll propose a build.
